What Does US/DS Light Blinking Means? [Causes and Solutions]

US/DS Light Blinking

A router is equipped with multiple indicator lights, each serving a specific purpose to provide information about the device’s status.

These lights convey valuable insights, such as the power light signifying the presence of electrical power, the Wi-Fi light indicating the status of the Wi-Fi connection, and several others that offer similar functionality.

However, I will only discuss US/DS light blinking, its significance and solutions in this article. So let’s jump into the main article.

What does the US/DS light mean?

Firstly, it’s essential to understand that the US/DS light can be two separate or a single light. The abbreviation “US” stands for “Upstream,” while “DS” stands for “Downstream.”

When you power on the router, the US/DS light begins to blink, which means it’s in the process of establishing a connection. The blinking stops once the connection is established, and the light stays solid.

If the US/DS lights keep blinking at one-second intervals, it means that you don’t have an active internet connection. This happens when the signal received by the router is weak, or there is no signal at all.

Cause for US/DS light Blinking

If the US/DS lights keep blinking at one-second intervals, it means that you don’t have an active internet connection. This happens when the signal received by the router is weak, or there is no signal at all.

The main reasons for this problem are:

  1. Maintenance or problems at the ISP site
  2. Loose or Disconnected cable
  3. Hardware Failure
  4. Loss of signal
  5. Firmware download in Progress (US/DS light is blinking, but the Online light is solid)

Now that we know the reason for US/DS light Blinking. Let’s jump to the fixes,

Fix 1: Check for a service outage or Maintenance at ISP Site

If your Internet Service Provider (ISP) is conducting maintenance or experiencing technical difficulties on their end, it can lead to the blinking of the US/DS light.

It signifies that you are receiving very weak to no signal at all, but unfortunately, this is beyond your control and requires the ISP to resolve the issue.

All you can do is contact your ISP and ask them about maintenance activities and the possible resolution time. Meanwhile, use cellular data or public Wi-Fi networks as temporary options to stay connected and be patient.

Visit the DownDetector website through the cellular network. This site provides information about any reported issues from other users regarding their services. It can give you an idea if there is a widespread problem with your ISP.

Fix 2: Inspect the Cable Connection

A secure connection between the router/modem and cable is required for the internet to work, whether you are using a Coaxial cable or ethernet cable.

If the ethernet cable or its connector is loose, you will see a blinking US/DS Light. You must replace the connector with a new one to solve the issue.

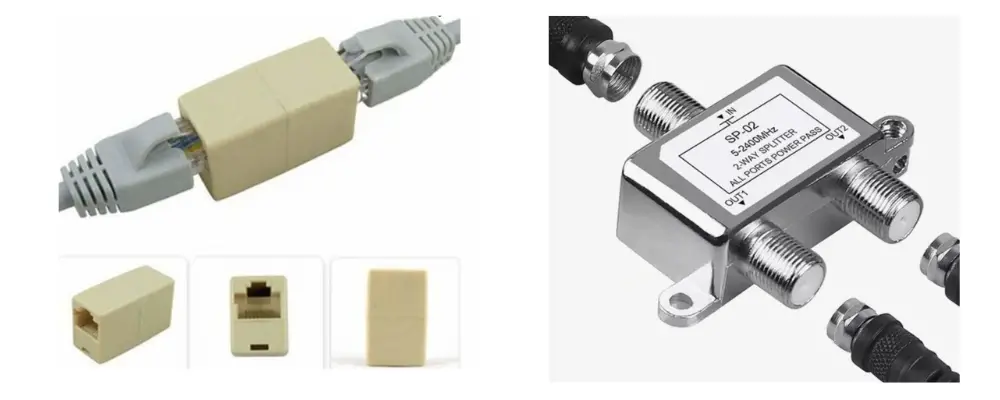

Similarly, if you are using a Coaxial cable, then both ends of the cable should be inspected for any loose connection. Disconnect and reconnect the cable to make sure everything is properly connected and tight.

Similarly, A defective or damaged Coaxial splitter can cause issues. Remove the splitter and connect the cable directly to the modem to check if the splitter is the problem. If the problem resolves, replacing the splitter will fix the issue.

Fix 3: Reboot The Router

A simple troubleshooting step you can take is to reboot your router. Here’s how: First, unplug the power cord and disconnect the coaxial or Ethernet cable. Wait for a few minutes, then reconnect the cables one by one.

Allow the router to start up again and check if the US/DS blinking light becomes solid. This process often resolves issues caused by a cache or temporary glitches.

Fix 4: Check the Hardware for Failure

If the US/DS blinking light continues, it could mean there’s a hardware problem with the device itself.

f the previous solutions we discussed didn’t work, contact the manufacturer for further help. They will give you specific instructions for your router model or determine if you need a replacement.

If your device is still under warranty, the support team might be able to offer repairs or provide a new unit.

But if the warranty has expired or the problem persists even after trying everything, you may need to consider buying a new modem/router.

Fix 5: Remove Causes of Loss of Signal

Signal loss from your ISP can trigger the US/DS light to blink—factors such as being far from the ISP’s network or experiencing interference from other devices or obstacles.

These issues can result in a weakened or interrupted signal reaching your modem, leading to the blinking US/DS light.

To address this problem, you must contact your ISP for assistance. They will be able to troubleshoot the signal loss and take necessary steps to resolve the issue, which may involve adjusting signal strength or addressing any interference sources.

Fix 6: Wait for the Firmware to Download

Firmware is the software that controls how the modem works. If you see the US/DS light blinking on your modem while the Online light stays solid, it means that the modem is currently downloading and installing a firmware update.

Be patient and let the process complete without interruption. After the firmware update is done, the modem will restart, and the lights will return to their normal state.

This regular update ensures that the modem has the latest software improvements for better performance.

Avoid interrupting the update to prevent any potential issues or errors that may occur from an incomplete installation.
